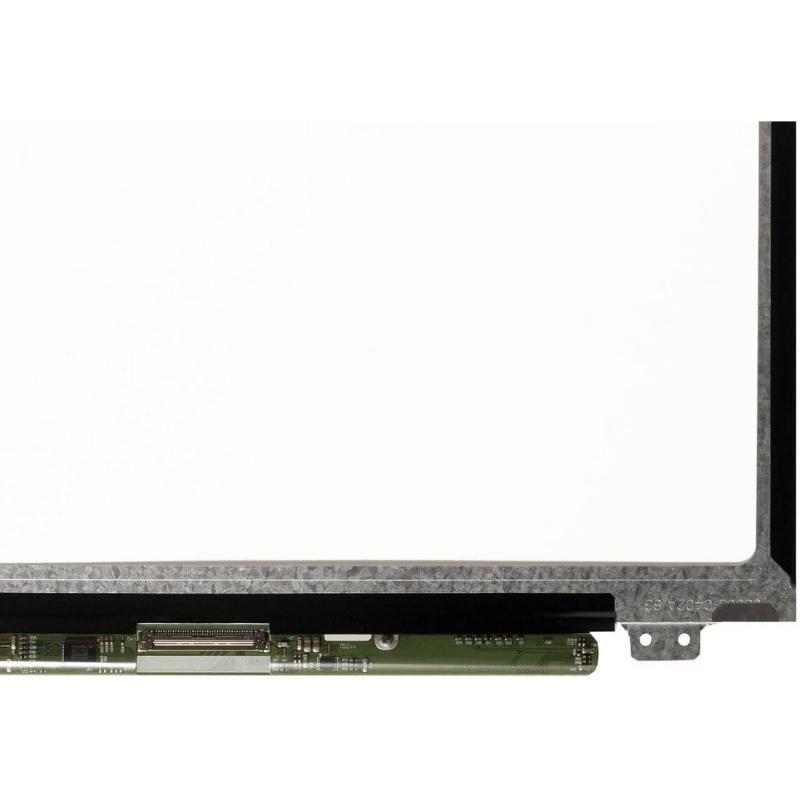

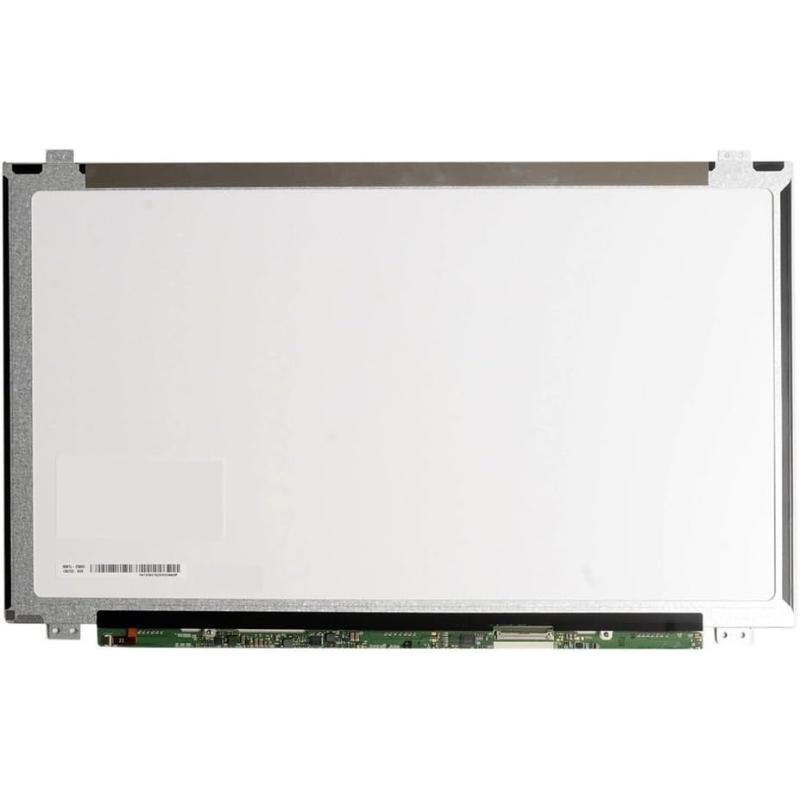

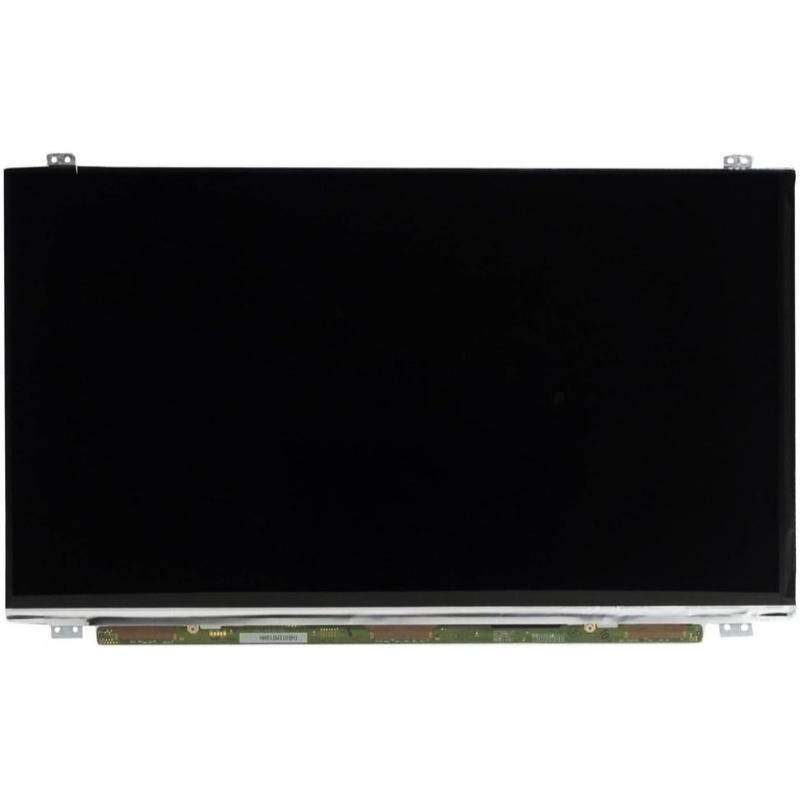

N156BGE-EB2 15.6″ 1366×768 Slim LED WXGA Bottom Right ***30PIN***. ***Glossy***

The N156BGE-EB2 is a 15.6-inch replacement LED screen with a slim profile, supporting a WXGA resolution of 1366×768. Designed for laptops with a bottom-right 30-pin eDP connector, it delivers clear, sharp visuals and features a glossy surface for enhanced contrast and color vibrancy. This screen is suitable for replacing damaged, cracked, or low-performing laptop displays. Ensure connector type, resolution, and screen size match your original panel before installation.

Specifications

• Model: N156BGE-EB2

• Screen Size: 15.6 inches (diagonal)

• Resolution: 1366 x 768 (WXGA HD)

• Screen Type: LED-backlit

• Connector Type: eDP 30-pin

• Connector Position: Bottom right

• Surface Finish: Glossy

• Panel Type: TN (Twisted Nematic)

• Aspect Ratio: 16:9

• Brightness: Typically around 200 nits

• Contrast Ratio: Typically 500:1

• Thickness: Slim (approx. 3.2mm)

• Mounting: No brackets (edge mount)

• Condition: New replacement screen

• Compatibility: Suitable for laptops requiring a 15.6" HD slim screen with 30-pin bottom-right connector
