Description

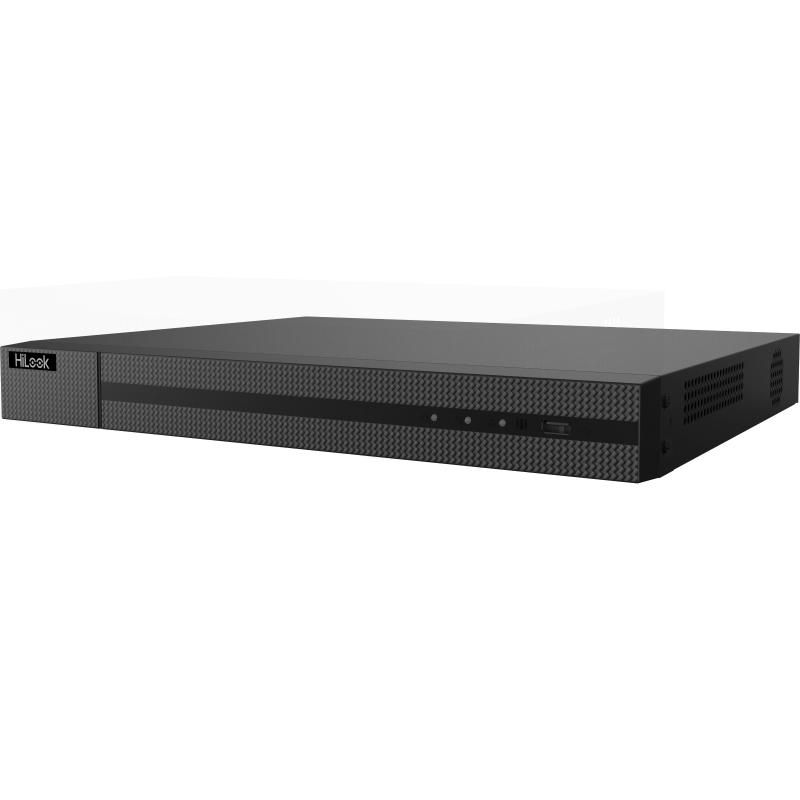

HiLook NVR-216MH-C/16P 16 Channel CCTV Recorder, 1U, 16 x PoE, 2 x HDD Bay, 4K NVR

The HiLook NVR-216MH-C/16P is a 16-channel CCTV recorder, designed for efficient and high-quality video surveillance. With up to 16 IP camera inputs and support for multiple video formats, it offers versatile and powerful decoding capabilities. Featuring a 4K NVR, up to 160 Mbps incoming bandwidth, and HDMI/VGA simultaneous output, this recorder is perfect for professional surveillance applications.

Features

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth

Video And Audio

• IP Video Input: 16-ch
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 80 Mbps
• HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding Format: H.265+,H.265,H.264+,H.264
• Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Decoding Capability: 4-ch@1080p
• Synchronous Playback: 16-ch

Network

• Remote Connection: 32
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 16-ch
• Power: ≤ 150 W
• Standard: IEEE 802.3 af/at

Auxiliary Interface

• SATA: 2 SATA interfaces
• Capacity: Up to 8 TB capacity for each disk
• USB Interface: 2 × USB 2.0

General

• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Consumption: ≤ 15 W (without HDD and PoE off)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10 to 90 %
• Chassis: 1U chassis
• Dimension (W × D × H): 385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
• Weight: ≤ 2.6 kg (without HDD, 5.7 lb.)
