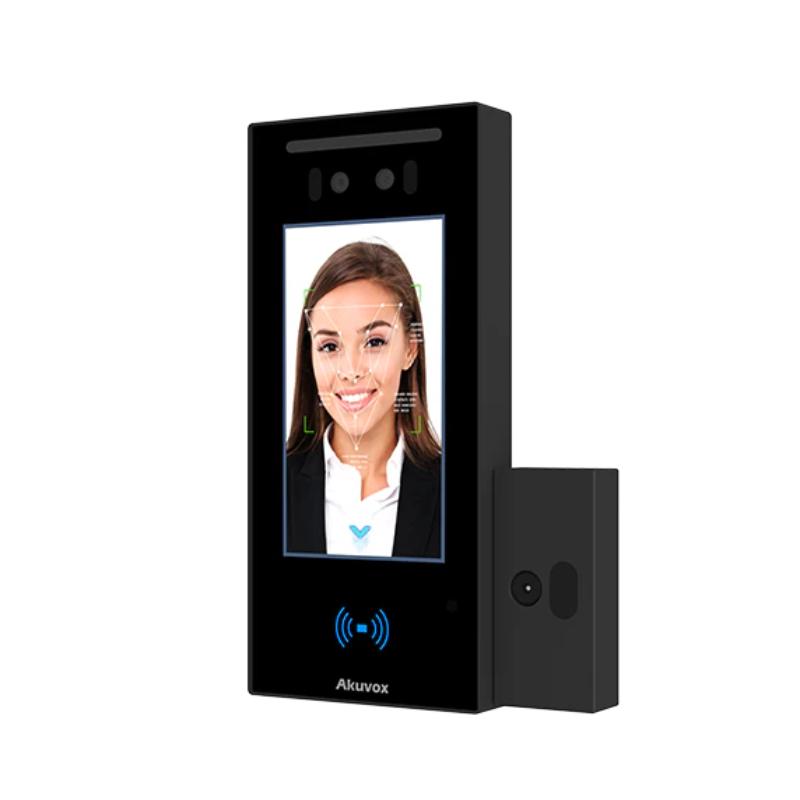

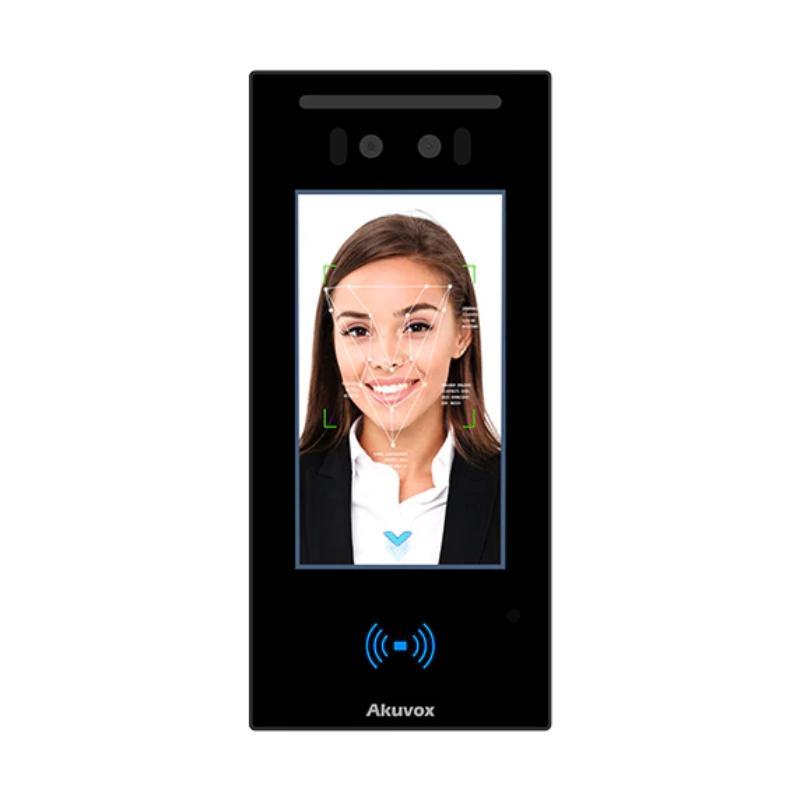

Akuvox A05S Smart Access Control Face Recognition APP

The Akuvox A05S is a commercial-grade facial recognition terminal designed for efficient access control in residential and commercial settings. It uses dual 2 MP cameras and deep learning AI for fast and secure face authentication. The device also supports NFC, QR code, and card verification methods. Mounted on walls with IP65 protection and powered via PoE or DC, it operates reliably in various environments. Users can configure and manage the terminal through the SmartPlus mobile app, enabling streamlined remote access control and visitor interaction.

Specifications

• Compatible Verification Methods: AI-based facial recognition, NFC cards, QR codes

• Face Capacity: Up to 20,000 records

• Card Capacity: Up to 20,000 (13.56 MHz NFC)

• Authentication Speed: < 0.2 seconds per user

• Recognition Accuracy: > 99.7%

• Camera: Dual 2 MP wide-angle with WDR

• Display: 5″ LCD, 1280 × 720 resolution

• Anti-spoofing: Supports liveness detection via dual cameras

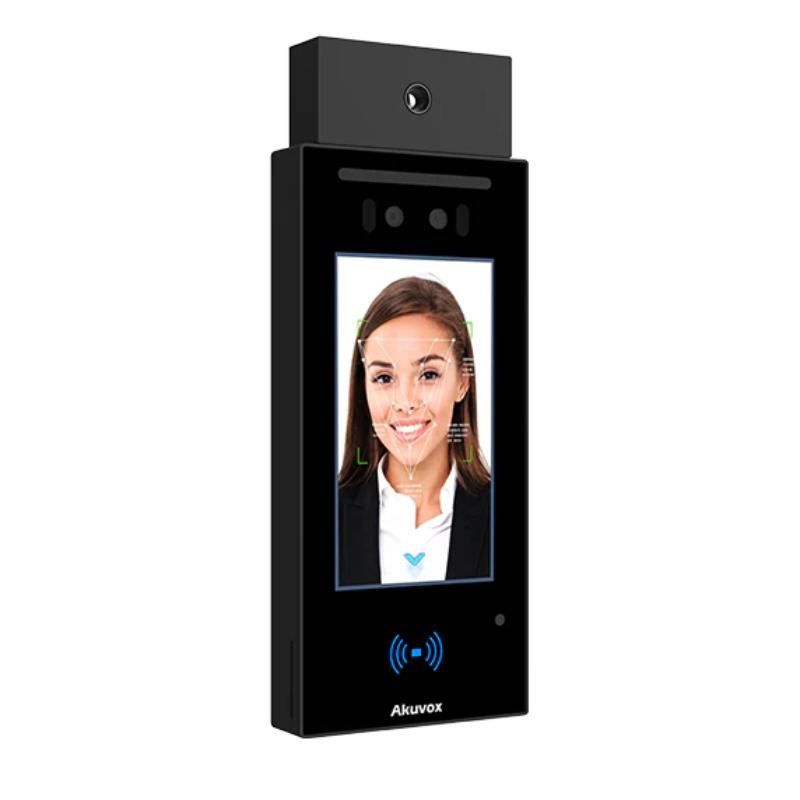

• Optional Anti-epidemic: Mask detection and temperature measurement modules (MD01/MD02)

• Relay Output: 1 relay for door control

• Communication Ports: Ethernet (10/100 Mbps), Wiegand, RS‑485

• Power: Supports PoE (802.3af) or 12 V DC

• Housing: Plastic housing, wall-mountable

• Protection Rating: IP65 (dust and water resistant)

• Operating Conditions: Temperature –20 °C to 60 °C; Humidity 10–90% (non-condensing)

• Storage Log: Up to 50,000 events

• Stand-alone Operation: Can function without network; settings via web interface
